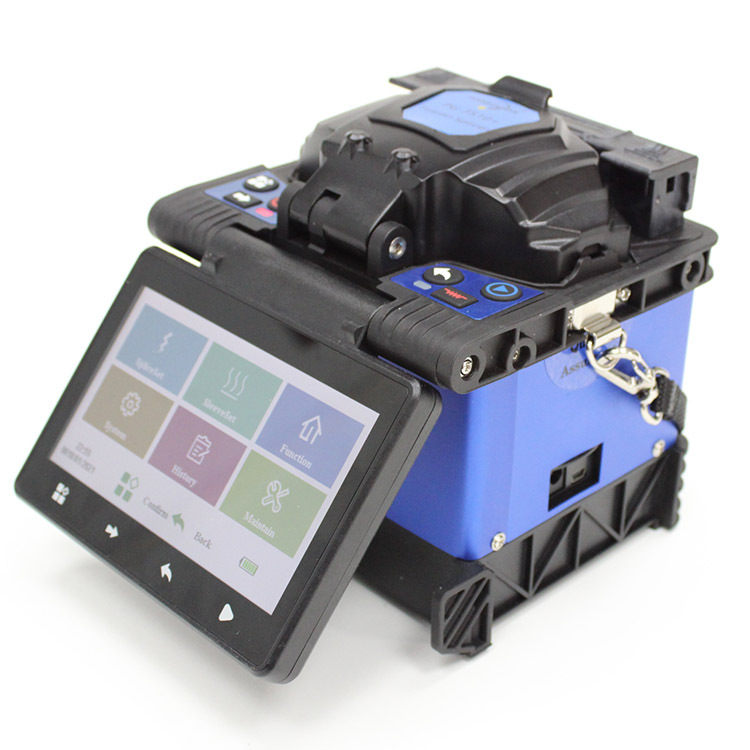

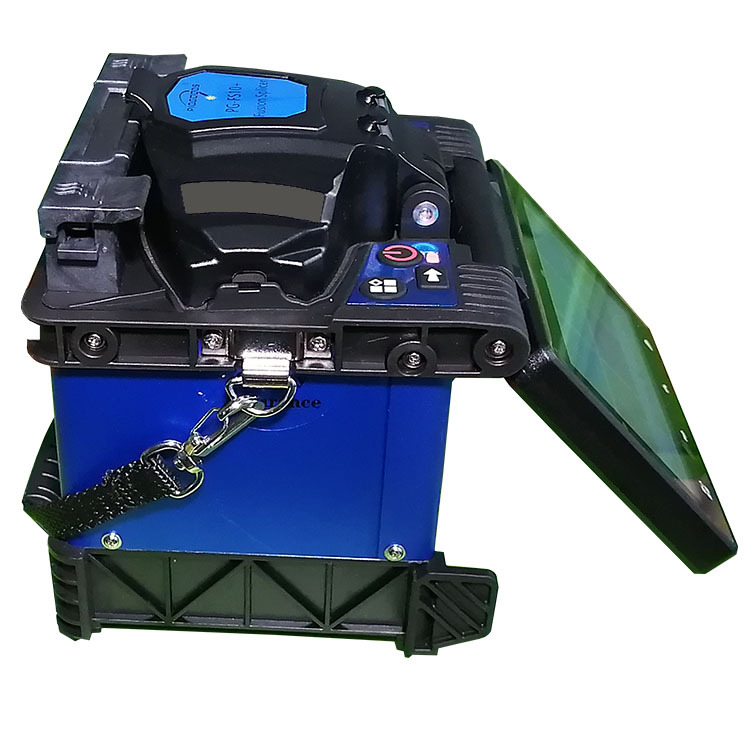

  • OL-FS10+ full automatic Fusion Splicer


    Products brief:
    Optical fiber fusion splicer is use for optical fiber cable maintenance and relative operations. Thus it’s also called fiber cable splicer. It’s a device that uses high precision propulsion structure to push two fibers to get closer to each other and uses an electric arc to melt two optical fibers together at their end faces, to form a single long fiber.

    Optical fiber fusion splicers are mainly applied by: Telecom carriers,ISP,network project contractors,laboratories. And they’re applied in: Fiber cable network maintenance, telecom projects, emergent repairing, optical experiments, manufacture and testing og optical devices, academic researches in collages.


    Specification:

    FIBER  TYPE

    SM(G.652/G.657),MM(G.651),DS(G.653),NZDS(G.655),EDF,BIF/UBIF

    APPLIC-ABLE CORE

    Single Core

    SPLICE TIME

    9s(Typical Mode)

    7s(Fast Mode)

    ALIGN MENT

    Core Alignment,Clad Alignment

    Language

    English, Russian, Spanish, Italian, Thai, Vietnamese

    WEIGHT SIZE

    Weight：1.19kg(Without battery）,1.53kg (With battery)

    Dimension:146D×131W×152H（mm）

    LOSS

    0.02Db(SM),0.01Db(MM),0.04Db(DS),0.04Db(NZDS)

    HEATING TIME

    2mm tube(10-15s adjustable),4mm tube(14-19s adjustable)

    6mm tube(17-23s adjustable)

    MAGNIFICATION TIMES

    X/Y:200 times,X or Y: 400times

    Battery Capacity

    230times splicing and heating
