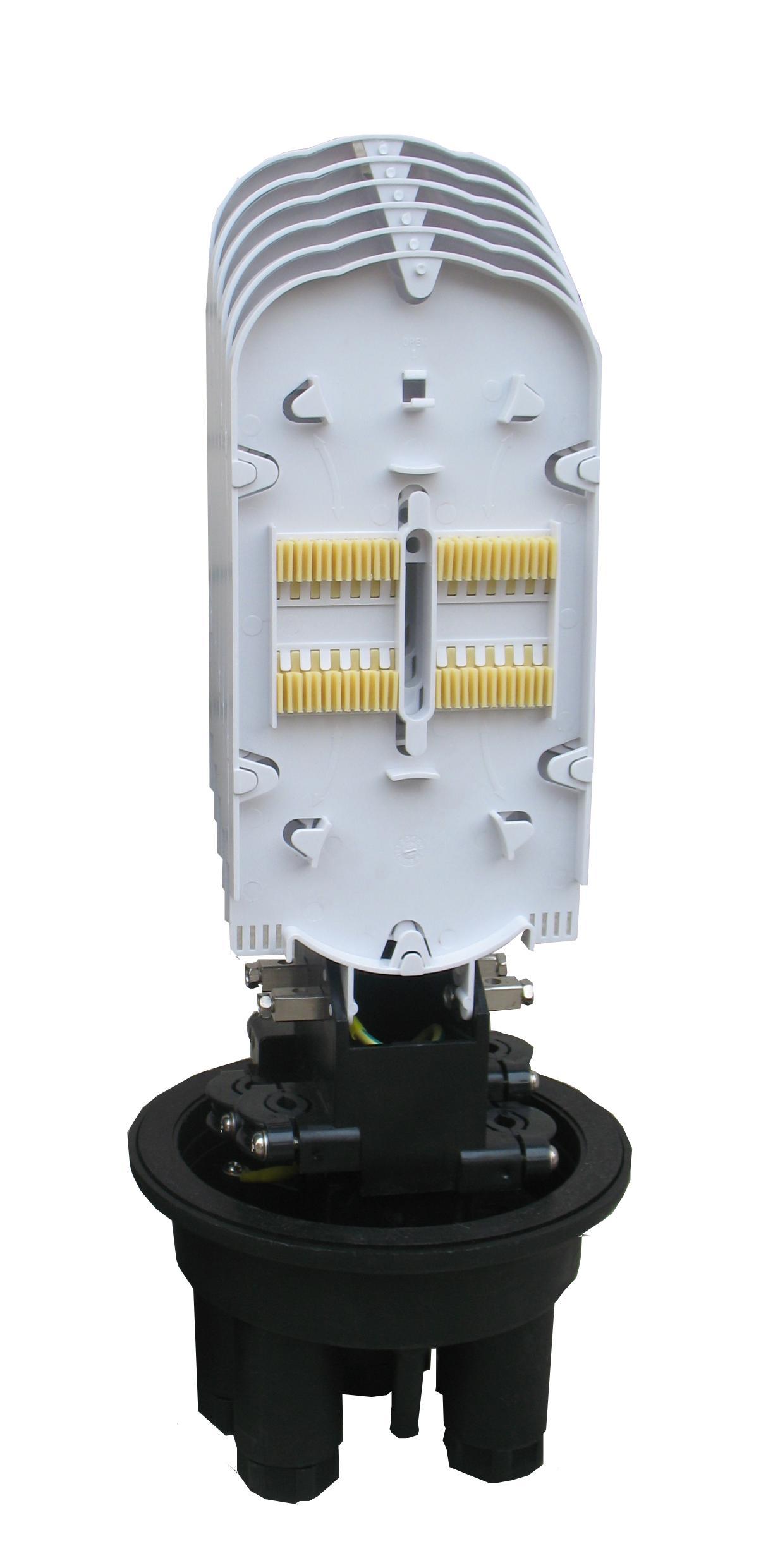

Fiber Optic Splice Closure OLFOSC20892
Product Description:
OLFOSC20892 closure is vertical allows 3 cables in and 3 cables out (with 4 stand-alone ports and 1 oval port) The outer shell is made of enhanced PC engineering plastic, it’s strong and light, can efficaciously prevent the lighting strike,erosion, aging and fire resist. The tray is pulldown, so it’s easy installation, don’t need dismantle other tray, the material of the sealing is silica gel, it can repeatable operation.
PG20892 is for FTTH, it can have splitter inside.
The scope of application : aerial, direct-buried, wall-mounting, duct-mounting.
The application of temperature :-40℃~65℃
Features:
◆Aging resistance with good stability of heat, thermal radiation, air, ozone and so on
◆Corrosion resistance strong resistance against acid, salt, oxidants and so on
◆Sealing TechnologyThe reopen components, or reusable self-adhesive rubber strips to ensure a good air tightness and water resistance
◆Close device no need special tools for easy installation and re open
◆Grouping function 3 inlet 3outlet can meet most requirements

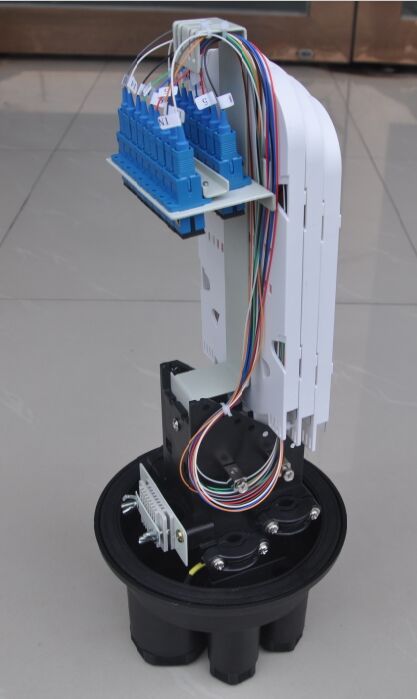

◆Splice tray using cascading structure, no need to take other splice tray when do operation
Technical Data:
ITEM |
Description |
Dimension(mm) |
435*230 |
Material |
MPP |
Weight(kg) |
3.5 |
Max. diameter(mm) |
22 |
Cable ports |
3 outlet 3 inlet |
