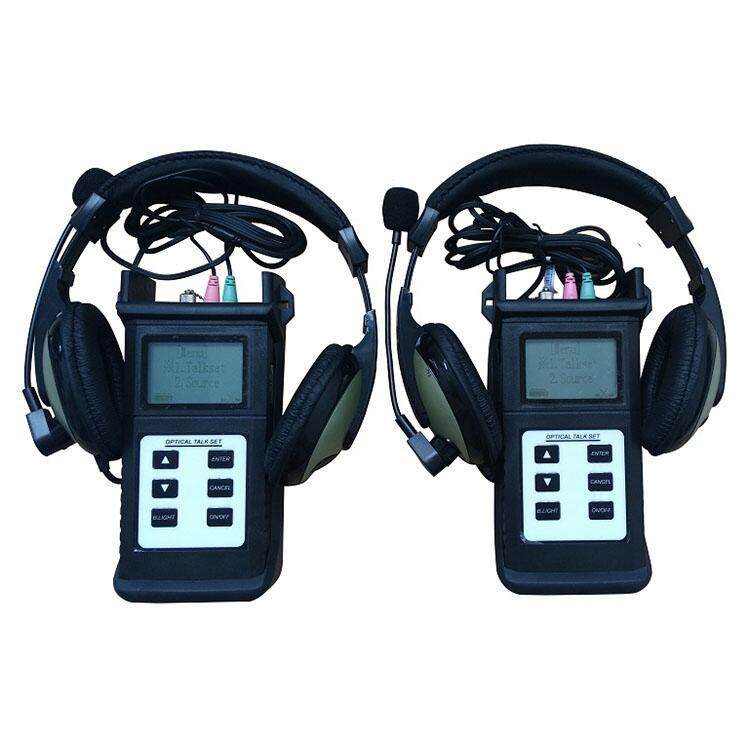

OL-OTS700 series optic fiber talk set
  • clicks:6
  • Product Category: Products Fiber equipment
  • product description: PGOTS700 series optic fiber talk set Product Description: PGOTS700 is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of
 [←]  OL-1200F series mini OTDR
 [→]  OL-OCPM18B series CWDM power meter

  • OL-OTS700 series optic fiber talk set

    Product Description:
    PGOTS700 is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network. The PGOTS700 Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance.
    Features:
    Full-duplex digital communication with high quality conversation connection and low background noise
    Together with Optical Clip-on Coupler, enables on line communications available
    Combining functions of both a digital optical phone call and a stabilized light source.
    Large LCD display with backlight
    Low battery power indication

    Specifications:
    Model OL-OTS700
    Wavelength(nm)
         		1310/1550
    Emitter Type
         		FP-LD
    Transmission Distance
         		≥80km
    Dynamic Range
         		40dB
    Output Power -5~-7dBm(9/125um), CW or 2KHz, 1KHz, 270Hz Modulation
    Output Stability ±0.1dB/±0.25dB(1/8hrs) CW
    Power Supply Rechargeable Battery + Power Supply Adaptor
    Battery Operating Time 5 hours
    Optical Connector FC/PC
    Operating Temperature(℃)
         		-10 ~ +60
    Storage Temperature(℃)
         		-25 ~ +70
    Dimension(mm)
         		215X115X55
    Weight(g) 520
