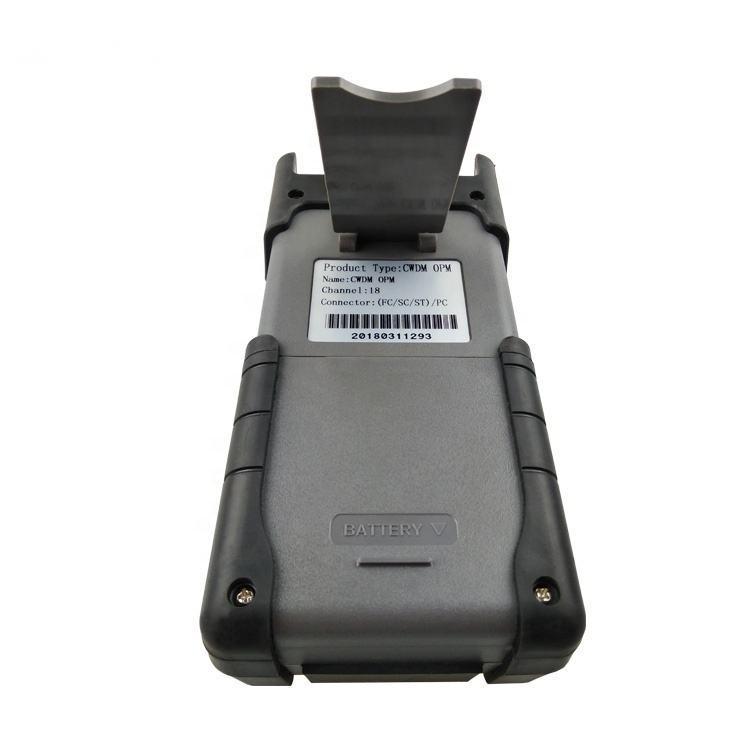

OL-OCPM18B series CWDM power meter
  • clicks:5
  • Product Category: Products Fiber equipment
  • product description:Product Description: OL-OCPM18B Power Meter is specially designed for system, covering wavelength from 1270~1610nm.It measures and monitors optical power and attenuation value of 18 channels from wavelength 1270nm to 1610nm wavelength.All calibrated wa
 [←]  OL-OTS700 series optic fiber talk set
 [→]  OL-OPM202 series power meter
  • Product Description:

    OL-OCPM18B Power Meter is specially designed for system, covering wavelength from 1270~1610nm.It measures and monitors optical power and attenuation value of 18 channels from wavelength 1270nm to 1610nm wavelength.All calibrated wavelengths will be tested simultaneously and all test results will show in the LCD screen. This power meter features simple operation, quick response and high measurement accuracy which make it an ideal tester in system installation and maintenance.


    Features:
    * Simultaneously test and show 18 wavelengths
    * Friendly interface and easy operation
    * Save and upload test results via USB port
    * 1000records

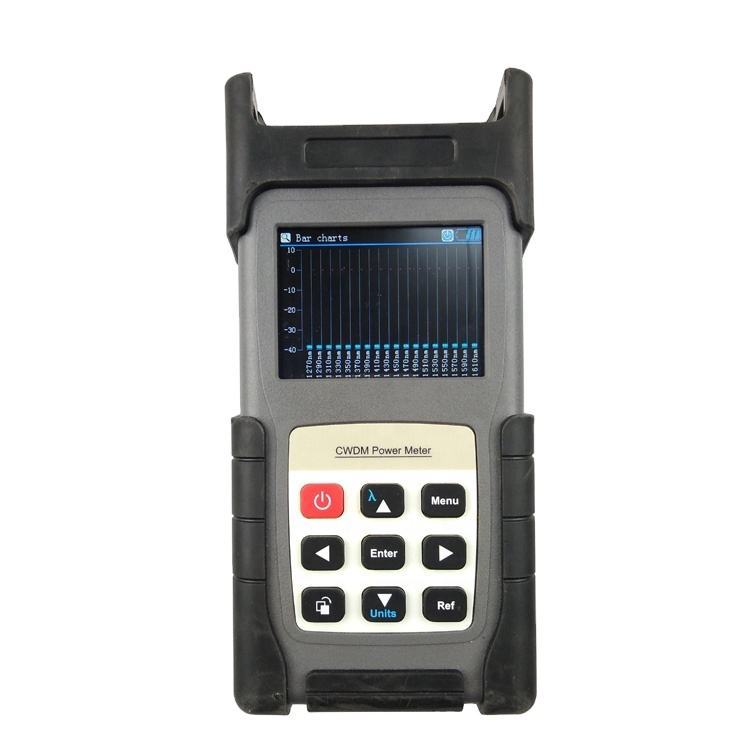

    * Columnar graphics or list mode to show test data
    * Color TFT-LCD display,high resolution 320*240
    * Built-in clock and can edit test fiber number
    * Quick start operation, requiring no warm-up time
    * Light weight

    Specifications:
    Model OL-OCPM18B CWDM Power Meter
    Wavelength Range 1270 ~ 1610 nm
    Number of Channels
         		18
    Wavelength resolution
         		20nm
    Measuring Wavelength (nm)
         		1270/1290/1310/1330/1350/1370/1390/1410/1430 1450/1470/1490/1510/1530/1550/1570/1590/1610
    Dynamic range +10 to -40dBm
    Resolution
         		0.01dB
    Optical interface
         		FC/PC(FC, LC, ST available)
    Operating Temperature
         		-10 to +60℃
    Power supply
         		Rechargeable Battery/AC power adapter
    Time of Operating 10h
    Dimension 220cm*110cm*70cm
    Weight 850g
