PG-OMM540 series optical power meter
  • clicks:9
  • Product Category: Products Fiber equipment
  • product description: OL-OMM540 series optical power meter Product Description: The meter is the company highly cost-effective optical multimeter. It’s the integration of power meter and light source. The meter has the function of recording, storing and uploading the data
 [←]  OL-OFI400 series optical fiber identifier
 [→]  MTP-200-20VC series OTDR

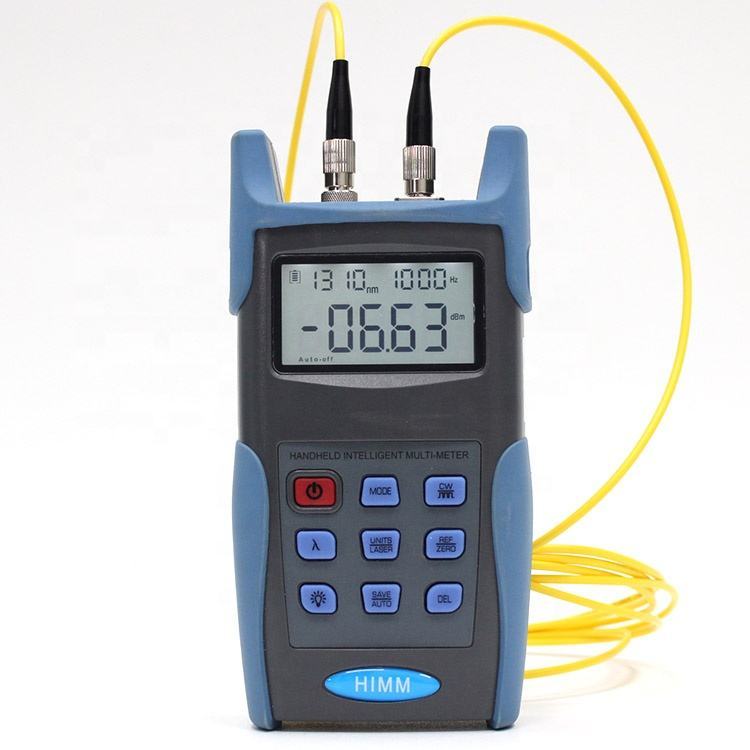

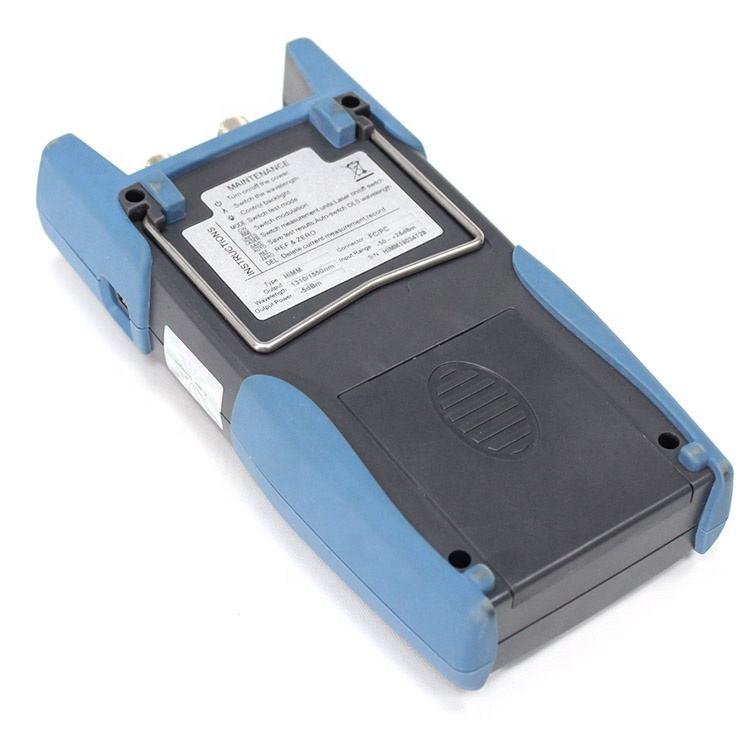

  • OL-OMM540 series optical power meter

    Product Description:
    The meter is the company highly cost-effective optical multimeter. It’s the integration of power meter and light source. The meter has the function of recording, storing and uploading the data tested by the instrument. They are widely used in the fiber-optic line project construction, testing and maintenance, such as digital data network, telecommunication network and cable television.

    Features:

    · Easy mode switching function
    · Stable Output light
    · Automatic switching function of the internal source wavelength
    · Detection of the frequency light
    · USB data communication storage, uploading and for power supply
    · Data Storage is up to 1000
    · Providing the real-time data reading to be embedded in system

    Specifications:

    Instrument model  and parameters

    		OL-OMM540A OL-OMM540C

    Power meter

    Calibration wavelength(nm)

    		850,1300, 1310,1490,1550,1625

    Testing range(dBm)

    		 -70~+6  -50~+26

    Display resolution(dB)

    		 0.01

    Uncertainty(dB)

    		≤±0.25

    linearity(dB)

    		≤±0.1

    Frequency indentification range

    		<10K

    Source

    Working wavelenght(nm)

    1310/1550(customizable)

    Typical Output Power(dBm)

    -5(customizable)

    Stability(dB,30min,20℃)

    ≤0.1dB

    Modulation frequency (Hz)

    CW,270Hz,1KHz,2KHz
