MTP-200-20VC series OTDR

clicks:8
Product Category: Products Fiber equipment
product description: MTP-200-20VC series OTDR Product Description: Shineway tech MTP-200 series are the compact multi-functional platform, which are specially designed for FTTx/WAN applications and can meet all test requirements of installers, contractors and servi

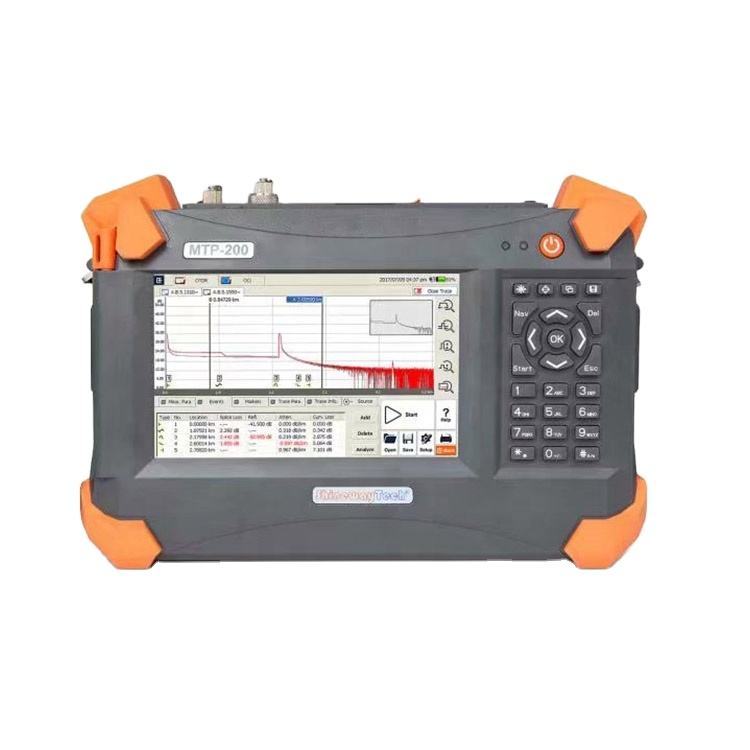

MTP-200-20VC series OTDR

Features:

1. Dynamic range up to 50dB.

2. Short zone: EDZ 0.8m, ADZ 4.5m

3. Auto/Manual test and analysis

4. Multi-wavelength testing

5.Visible laser source function.

6. In-Line test and through Splitter test(1625/1650nm with filter)

7. OTDR Module up to four wavelength/loss/return loss measurement, connector/splice/macro bend/fiber-end detection

8. LAN/WAN/FTTx application

9. SOR and JPG file format

10. flexible file naming

Specifications:

Display	7 inch TFT Touch Screen(800x480)
Connectivity	USBx2;10/100M Mbits/s RJ-45x1
Memory	2GB
Power supply	Rechargeable Li-lon Battery/AC adapter
Working Temp	-20℃-50℃
Storage Temp	-40℃-60℃
Humidity	0-95%(Non-Condensing)
Weight	2.1kg
Dimensions(LxWxH)	290x175x75mm

Wavelength(±20nm)
