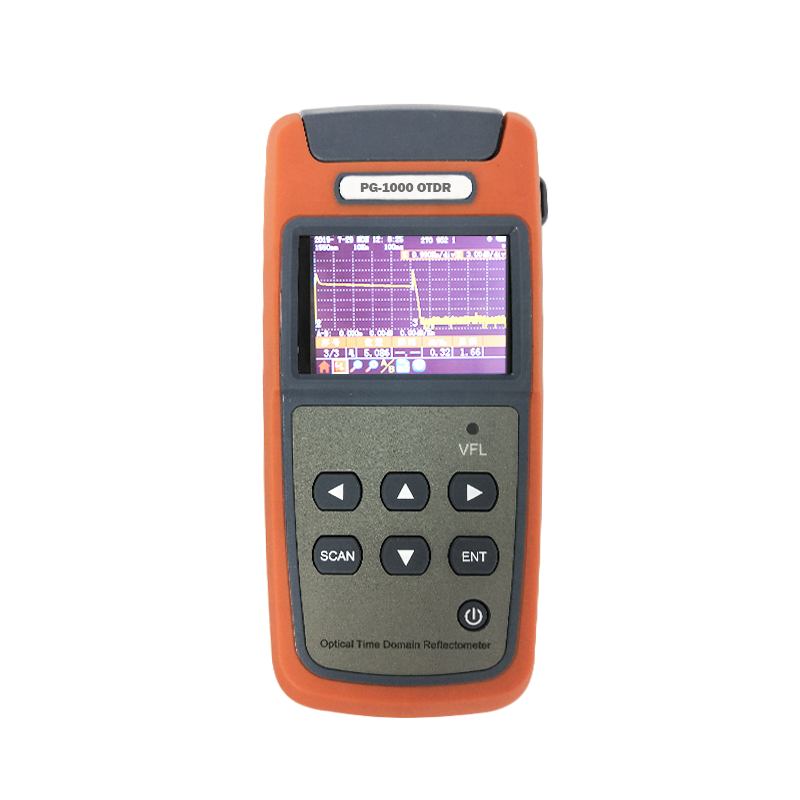

  • OL-1000 series 1550nm mini OTDR

    Product Description:
    OL1000 OTDR is the most portable instrument in the industrial. It adopts the OTDR’s technical principles and integrates the powerful analysis software, which enable the PG1000 OTDR detect the fiber faults location more accurate and easily.

    Feature:

    1, portable, rugged, light weight, easy to use

    2, more accurate testing results and better repeatability

    3, Automatic Pulse Width Control design to ensure a convenient operation

    4, Easy to identify the fault location

    5, Built-in Visual Fault Locator (VFL), conveniently to find the faults in dead zone

    6, Dust, water and shock proof, designed for field use

    7, Long battery life, up to 1000 measurements operation

    8, 2.6 inchs screen, data save in SOR format

    Datasheet:
    Type OL1000
    Operation wavelength
    1550nm
    Fiber type
    9/125, SM
    Optic connector type
    SC/UPC
    Dynamic Range
    22dB
    Pulse 10ns to 10us, auto
    Unit m
    Reflection Event Dead Zone 3m
    Attenuation Event Dead Zone
    10m
    Accuracy ±(1m+2x10-4xdistance)
    Power of VFL 1mw
    Power supply
    3pcs AA battery
    Battery operation time
    2000times
