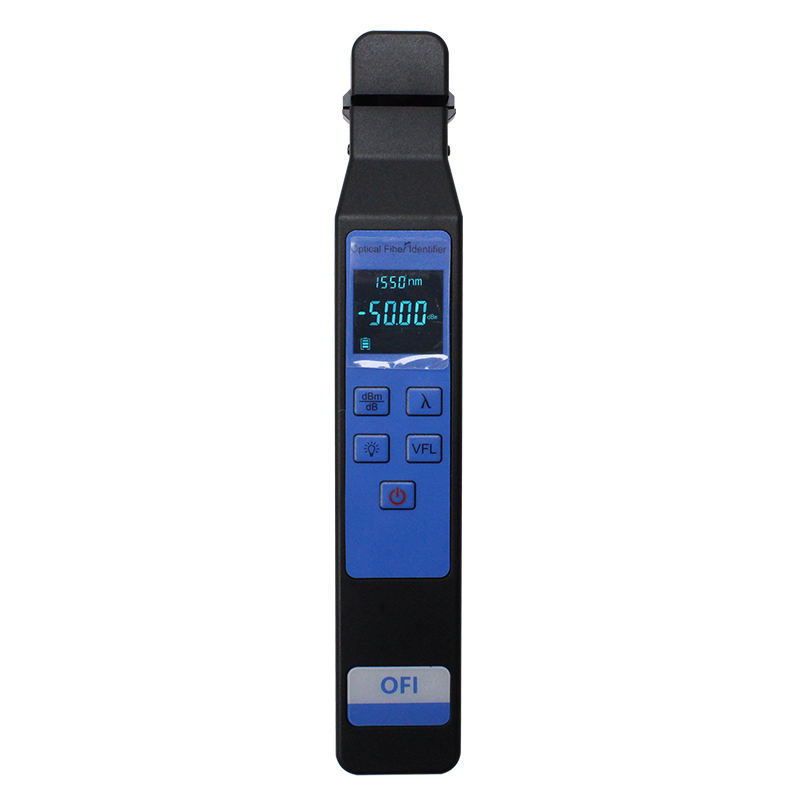

OLOFI620 series optical fiber identifier
  • clicks:24
  • Product Category: Products Fiber equipment
  • product description: OLOFI620 series optical fiber identifier Product Description: Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module
  • OLOFI620 series optical fiber identifier

    Product Description:

    Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function and power meter function..

    Using the macro bending technology on line for nondestructive testing, It can measure the signal direction and power and avoid mis-operation resulting in interrupted lines.

    ---Macro bending measurement. Macro bends are the use of fiber-optic bending leak out when the weak optical signal, optical signal to detect the direction and intensity. Does not damage optical fiber, without interrupting communications, and direct detection of 2.5mm bare fiber, 0.9mm and 2.5mm fiber casing tight jumper.

    Features:

    Build in 10 mW VFL function

    Build in Optical power meter

    Metal gripper,no need to change the adapter

    Low battery monitoring function

    Tone identification, Optical Fiber Identifier can detect optical signals in the tone signal fixed load, 270Hz, 1KHz and 2KHz, to identify a specific optical fiber, can quickly find the necessary fiber

    Specifications:

    Wavelength 800nm-1700nm

    Pass through insertion loss:

    1. 250um / 900um optical fiber

    2. 2.0 / 3.0 optical fiber

    1. 1.0dB

    2. 1.5dB

    Application of optical fiber
    250um/900um/2mm/3mm optical fiber
    Identified Signal Type
    270HZ/1KHZ/2KHZ
    Identification of modulated signals Yes
    Power Measurement Yes
    Display LED color screen
    Tone Yes
    Low power monitoring
    Yes
    Detector type
    1mm InGaAs
    Specifications of VFL
    Wavelength:     650nm±10nm
    Output Power:   10 mW
    Fiber Port:
    2.5 universal connector
    Specifications of OPM
    Wavelength
     800~1700nm
    Calibration certificate
    850/1300/1310/1490/1550/1625nm
    Measurement range
    -50~+26dBm
    Connector type
    2.5 universal connector
    Power supply:
    2*AA  1.5V Alkaline Battery
    Operation Temperature:
    -10℃  to  +50℃
    Storage Temperature:
    -20℃  to  +70℃
    Outline size
    230*43*36mm
    weight
    200g
